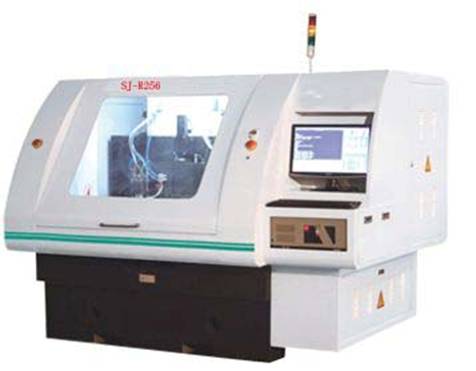

R256

Special for Aluminum plate processing and small batch PCB OR sample PCB production

Function Characteristics

• Frequency system made by Taiwan
• Using Taiwanline rail and ball screw;
• Imported AC servo driver combination
• Adds “cooling system”, its effect is cooling machine tools and production of sheet metal, so as to improve the production efficiency, improve production quality and reduce the loss of the cutting tool.
• The base beam adopts the high quality granite, high precision, good stability.

Spindles adopt the following protective measures:

• -speed monitoring
• -overcurrent monitoring

Main Parameter



Item	R256
Number of Spindles	2
Processing area of each axis	560×730mm
Stripping Method	Manual/semi-automatic
Spindle Distance	570mm
Spindle Type	Domestic/Import
Rev of Spindle	15krpm-60krpm/10krpm-50krpm
Control System	Taiwan CNC
Drive System	Imported  AC Servo
Operation Interface	Chinese/English
Positioning Speed	15-20m/min
Positioning Accuracy	±0.01mm
molding precision	±0.07mm/±0.1mm(test in our plant)
Tooling change type	Semi-automatic/automatic
Machine Size	2100×1760×1560mm
Accommodation Size	3500×3000×2500mm
Power Requirement	220v±10%，380v±10%≤5KVA
Compressed air requirement	7kg/cm2   50L/min
Dust collection Requirement	1000mm waterspout 5m3/min
Spindle Cooling method	Sealed thermostatic water cooling
Machine Weight	3000kgs





R448A/B/D  For lots precision PCB production

Function Characteristics

• Frequency system made by Taiwan
• Using Taiwanline rail and ball screw;
• Imported AC servo driver combination
• The base beam adopts the high quality granite, high precision, good stability.
• Automatic stripping using matrix array, wide distribution. This improves the processing efficiency and utilization rate of the bottom plate.



Spindles adopt the following protective measures:

• -speed monitoring
• -overcurrent monitoring

Main Parameter



Item	R448A	R448B	R448D
Number of Spindles	4	4	4
Processing area of each axis	480×680mm	480×680mm	480×680mm
Stripping Method	Semi-automatic	Manual	automatic
Spindle Distance	490mm	490mm	490mm
Spindle Type	Domestic/Import	Domestic/Import	Domestic/Import
Rev of Spindle	15krpm-60krpm/10krpm-50krpm	15krpm-60krpm/10krpm-50krpm	1.5krpm-6krpm
Control System	Taiwan CNC	Taiwan CNC	Taiwan CNC
Drive System	Imported AC Servo	Imported AC Servo	Imported AC Servo
Operation Interface	Chinese/English	Chinese/English	Chinese/English
Positioning Speed	10-25m/min	10-25m/min	10-25m/min
Positioning Accuracy	±0.01mm	±0.01mm	±0.005mm
XY axis measuring system	closed loop feedback encoder	Semi closed loop feedback encoder	Semi closed loop feedback encoder
molding prcision	±0.08mm/±0.01mm(test in our plant)	±0.08mm/±0.01mm(test in our plant)	±0.08mm/±0.01mm(test in our plant)
Tooling change type	Semi-automatic	Semi-automatic	Semi-automatic
Machine Size	2900×1660×1560mm	2900×1660×1560mm	2900×1690×1560mm
Accommodation Size	4200×3200×2500mm	4200×3200×2500mm	4200×3200×2500mm
Power Requirement	220v±10%，380v±10%≤7KVA	220v±10%，380v±10%≤7KVA	220v±10%，380v±10%≤7KVA
Compressed air requirement	7kg/cm2   50L/min	7kg/cm2   50L/min	7kg/cm2   50L/min
Dust collection Requirement	1000mm waterspout 8m3/min	1000mm waterspout 8m3/min	1000mm waterspout 8m3/min
Spindle Cooling method	Sealed thermostatic water cooling	Sealed thermostatic water cooling	Sealed thermostatic water cooling
Machine Weight	5300kgs	5000kgs	5500kgs







R456D  For lots precision PCB production

Function Characteristics

• Frequency system made by Taiwan
• Using Taiwanline rail and ball screw;
• Imported AC servo driver combination
• The base beam adopts the high quality granite, high precision, good stability.
• Automatic stripping using matrix array, wide distribution. This improves the processing efficiency and utilization rate of the bottom plate.
• Each axis automatic exchange nine toolings, tool breakage detection.
• Auto-door service, improve product efficiency.





Spindles adopt the following protective measures:

• -speed monitoring
• -overcurrent monitoring

Main Parameter



Item	R456D
Number of Spindles	4
Processing area of each axis	560×700mm
Stripping Method	Semi-automatic
Spindle Distance	570mm
Spindle Type	Import
Rev of Spindle	15krpm-60krpm
Control System	Taiwan CNC
Drive System	Imported AC Servo
Operation Interface	Chinese/English
Positioning Speed	15-28m/min
Positioning Accuracy	±0.005mm
XY axis measuring system	Import length guage(encoder) closed-loop feedback resolution 1 m
molding precision	±0.07mm(test in our plant)
Tooling change type	Automatic tool change+tooling breakage detection
Machine Size	3240×1760×1650mm
Accommodation Size	5000×3500×2500mm
Power Requirement	220v±10%，380v±10%≤9KVA
Compressed air requirement	7kg/cm2   50L/min
Dust collection Requirement	1000mm waterspout 8m3/min
Spindle Cooling method	Sealed thermostatic water cooling
Environment Requirement	Temperature 20-25ºC Relative humidity below 75%
Machine Weight	7500kgs

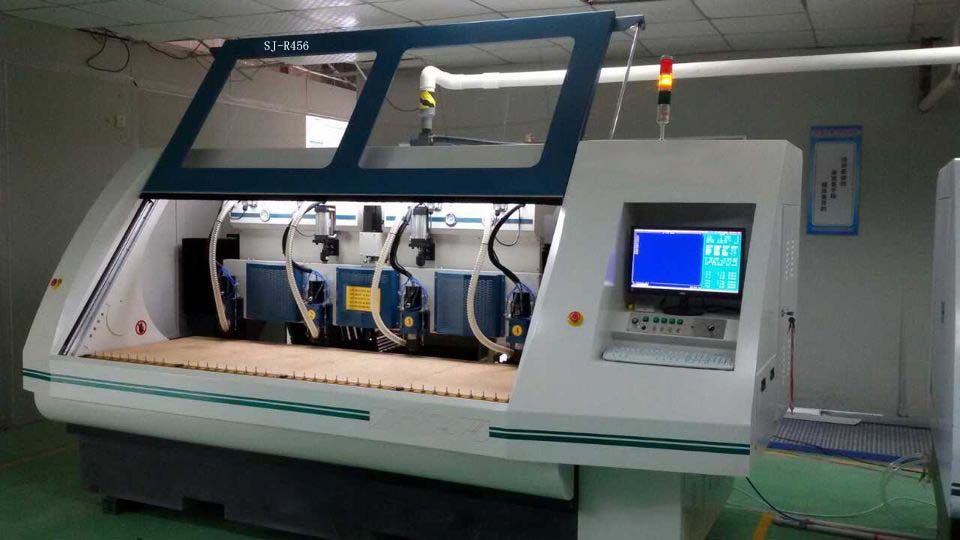

R456A/B  For lots precision PCB routing/lamination production

Function Characteristics

• Frequency system made in Taiwan
• Using Taiwanline rail and ball screw;
• Imported AC servo driver combination
• The base beam adopts the high quality granite, high precision, good stability.
• Automatic stripping using matrix array, wide distribution. This improves the processing efficiency and utilization rate of the bottom plate.



Spindles adopt the following protective measures:

• -speed monitoring
• -overcurrent monitoring

Main Parameter

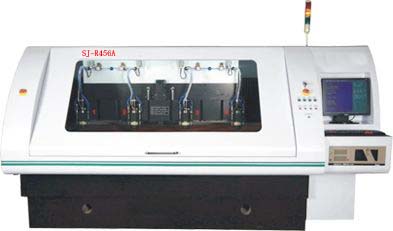

Item	R456A	R456B
Number of Spindles	4	4
Processing area of each axis	560×730mm	560×730mm
Stripping Method	Semi-automatic	Manual
Spindle Distance	570mm	570mm
Spindle Type	Domestic/Import	Domestic/Import
Rev of Spindle	15krpm-60krpm/10krpm-50krpm	15krpm-60krpm/10krpm-50krpm
Control System	Taiwan CNC	Taiwan CNC
Drive System	Imported AC Servo	Imported AC Servo
Operation Interface	Chinese/English	Chinese/English
Positioning Speed	10-25m/min	10-25m/min
Positioning Accuracy	±0.01mm	±0.01mm
XY axis measuring system	Semi closed loop feedback encoder	Semi closed loop feedback encoder
molding prcision	±0.07mm/±0.10mm(test in our plant)	±0.07mm/±0.10mm(test in our plant)
Tooling change type	Semi-automatic	Semi-automatic
Machine Size	3240×1760×1650mm	3240×1760×1650mm
Accommodation Size	5000×3000×2500mm	5000×3000×2500mm
Power Requirement	220v±10%，380v±10%≤8KVA	220v±10%，380v±10%≤8KVA
Compressed air requirement	7kg/cm2   50L/min	7kg/cm2   50L/min
Dust collection Requirement	1000mm waterspout 8m3/min	1000mm waterspout 8m3/min
Spindle Cooling method	Sealed thermostatic water cooling	Sealed thermostatic water cooling
Environment Requirement	Temperature 20-25ºC Relative humidity below 75%	Temperature 20-25ºC Relative humidity below 75%
Machine Weight	7300kgs	7000kgs
