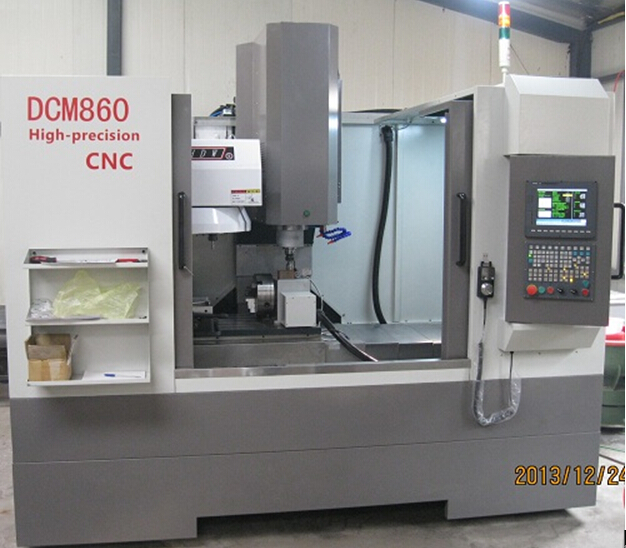

860 vertical processing center detail introduction

Machine body material is Taizan Green Granite, high precision, no corrosion, no deformation, little vibration, steady performance, mechanical property is better than cast iron material body. It’s the priority choice for high precision engraving cutting  machine.

Machine drive servo system: Japan and Taiwan made high precision guide rail, ball screw, AC servo motor, high speed spindles, high frequency inverter etc, ensure processing material with high speed and precision, extend machine work life.

Machine control system: CNC control system, fully close control, open software connect, friendly operation interface, international standard G code workable, applicability.

Application: SJ series CNC high precision engraving cutting machine widely applied to molding, metals, clocks and watches, spectacles, shoes, print, electronics, decorations, models etc and glass process for mobile phone, digit product, laptop, high light process for mobile phone button , fine processing for all kinds of middle or small size copper mold, steel mold, aluminum mold.



Machine type		DCM860
Worktable	Worktable size	860/560mm
	Tg roove size	18/5/100mm
	Max load	600KG
Position Accuracy	X axis	±0.005/500mm
	Y axis	±0.005/500mm
	Z axis	±0.005/500mm
Repeatable position accuracy	X axis	±0.005/500mm
	Y axis	±0.005/500mm
	Z axis	±0.005/500mm
Work Area
	X/Y/Z axis	850/600/600mm
	Z spindle to work table	Max 730mm
Tooling	Tooling type	The bamboo hat / disc type
	Tooling grip way	Bidirectional nearest tool selection
	Tooling quantity	16/20
Routing Spindle	Speed	200-8000rmp
	Power	7.5KW
	Tool size	BT4
Feed Rate	Machine move speed	18m/min
	Max routing move speed	1-10m/min
Machine System	X/Y/Z/Asevo system(A axis can be choose)	AC servo
Machine Voltage	Work voltage	三相380V/50HZ
Machine Air	Air power	0.55MPa
Machine Weight	Weight	6000KG
Machine Size	Size	2800/2300/2500
Control System	CNCsystem	K1000

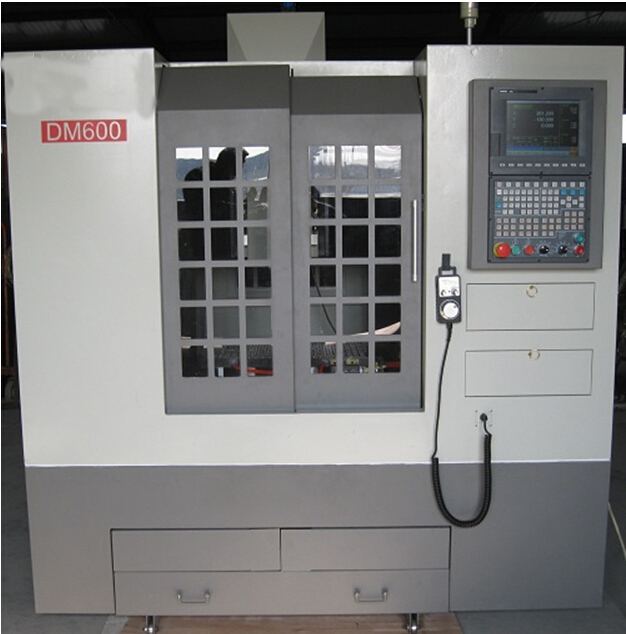

Full-automatic DM600 CNC Engraving Cutting Machine



Machine body material is Taizan Green Granite, high precision, no corrosion, no deformation, little vibration, steady performance, mechanical property is better than cast iron material body. It’s the priority choice for high precision engraving cutting  machine.

Machine drive servo system: Japan and Taiwan made high precision guide rail, ball screw, AC servo motor, high speed spindles, high frequency inverter etc, ensure processing material with high speed and precision, extend machine work life.

Machine control system: CNC control system, fully close control, open software connect, friendly operation interface, international standard G code workable, applicability.

Application: SJ series CNC high precision engraving cutting machine widely applied to molding, metals, clocks and watches, spectacles, shoes, print, electronics, decorations, models etc and glass process for mobile phone, digit product, laptop, high light process for mobile phone button , fine processing for all kinds of middle or small size copper mold, steel mold, aluminum mold.

machine type

DM600	DM500A	DM500B	DM1065A
Position Accuracy	X/Y/Z axis movement accruacy	0.008/0.008/0.008mm	0.008/0.008/0.008mm	0.008/0.008/0.008mm	0.008/0.008/0.008mm
	X/Y/Zaxis repeatable positional accuracy	0.005/0.005/0.005mm	0.005/0.005/0.005mm	0.005/0.005/0.005mm	0.005/0.005/0.005mm
Work area	X/Y/Zaxis work area	600/530/200mm	530/530/200mm	530/530/200mm	1000/650/320mm
	Zaxis to  work table distance	327mm	327mm	327mm	420mm
Z axis load	Max work load	200KG	200KG	200KG	200KG
Routing Spindle	Spindle Speed	5000-21000rmp	5000-24000rmp	5000-30000rmp	5000-18000rmp
	Spindle Power	4.0KW	3.0KW	4KW	5.5/7.5KW
	Tooling Size	ER20	ER20	ISO20	ER32
	Tooling Quantity			8个
Feed Rate	Machine move rate	12m/min	12m/min	12m/min	12m/min
	Max routing Move speed	6m/min	6m/min	6m/min	6m/min
Machine System	X/Y/Z/Aservo system（A axis can choose）	AC Servo	AC Servo	AC Servo	AC Servo
	Control System	DONSN CNC2000	DONSN CNC2000	（Can choose new system）	DONSN CNC2000
		（Can choose new system）	（Can choose new system）		（Can choose new system）
Machine Voltage	Work Voltage	Three phase 380V/50HZ	Three phase 380V/50HZ	Three phase 380V/50HZ	Three phase 380V/50HZ
